Design Challenges Engineers Face When Using Lithium Niobate Wafers

 As demand for high-speed communication, integrated photonics, RF systems, and quantum technologies continues to grow, Lithium Niobate Wafers have become one of the most important materials in advanced electronic and optical device manufacturing. Their excellent electro-optic, piezoelectric, and nonlinear optical properties make them ideal for applications such as optical modulators, RF filters, acoustic wave devices, and photonic integrated circuits.

However, despite their outstanding performance advantages, engineers face several design and manufacturing challenges when working with Lithium Niobate Wafers. From fabrication complexity to thermal management and integration compatibility, these challenges require careful engineering optimization to achieve reliable device performance.

As a professional wafer supplier, CQT provides high-quality Lithium Niobate Wafers designed to support advanced device development while helping manufacturers improve production consistency and reliability.

Why Lithium Niobate Is Widely Used

Before examining the challenges, it is important to understand why Lithium Niobate Wafers are so valuable in modern technology.

Lithium niobate offers:

· Strong electro-optic properties

· Excellent piezoelectric performance

· High optical transparency

· Low signal loss

· Wide bandwidth capability

· Fast signal modulation

These characteristics make the material highly suitable for:

· Optical communication

· 5G RF systems

· Photonic integrated circuits

· Quantum photonics

· LiDAR systems

· Microwave photonics

However, high-performance materials often come with engineering complexities.

Crystal Orientation and Material Precision Challenges

Importance of Crystal Orientation

Lithium niobate is an anisotropic crystal material, meaning its physical properties vary depending on crystal orientation.

Small orientation deviations can significantly affect:

· Electro-optic efficiency

· Acoustic wave propagation

· Signal stability

· Device performance consistency

Engineers must carefully select and control wafer orientation during device design and fabrication.

Tight Manufacturing Tolerances

Advanced optical and RF devices require extremely precise wafer specifications.

Critical parameters include:

· Surface flatness

· Thickness uniformity

· Crystal defect density

· Surface roughness

· Orientation accuracy

Even minor imperfections in Lithium Niobate Wafers may reduce device yield and performance.

CQT focuses on precision wafer manufacturing to help support demanding engineering requirements.

Fabrication Complexity in Thin-Film Structures

Thin-film lithium niobate technology has expanded rapidly, but it introduces additional engineering challenges.

Difficult Etching Processes

Lithium niobate is chemically stable and relatively difficult to etch compared with silicon-based materials.

Engineers often face challenges such as:

· Slow etching rates

· Surface damage during processing

· Rough sidewall formation

· Reduced optical performance

Achieving smooth and precise waveguide structures requires advanced fabrication techniques.

Bonding and Layer Transfer Challenges

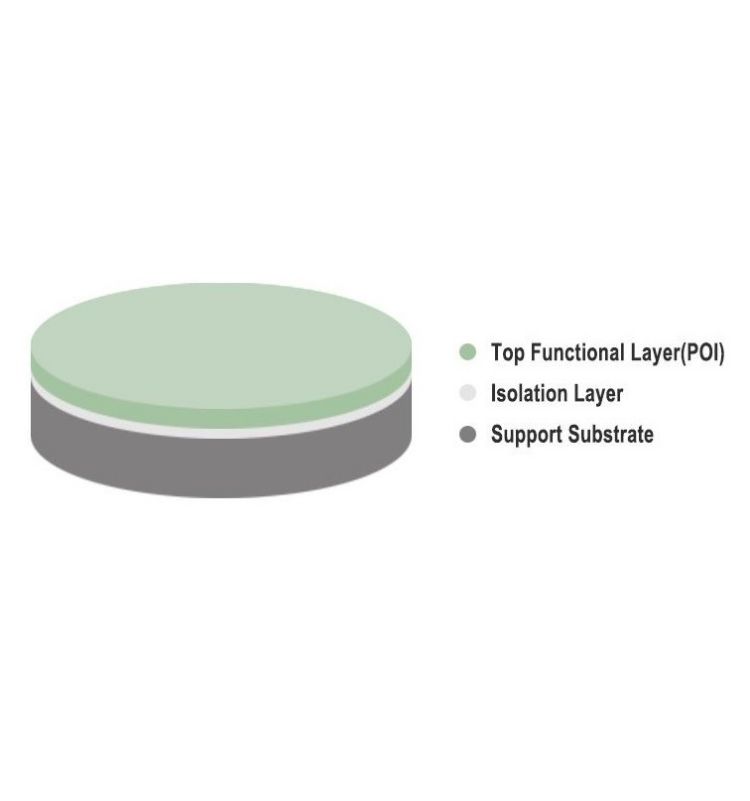

Thin-film Lithium Niobate Wafers often involve complex bonding processes in Lithium Niobate on Insulator (LNOI) structures.

Challenges include:

· Bonding uniformity

· Interface defects

· Film stress control

· Thermal expansion mismatch

Poor bonding quality can negatively affect device reliability and optical efficiency.

Thermal Management Difficulties

As communication and photonic devices become smaller and faster, thermal control becomes increasingly important.

Heat Accumulation in Compact Devices

High-speed optical modulators and RF components generate heat during operation.

In compact integrated systems, engineers must manage:

· Localized thermal hotspots

· Frequency drift

· Optical instability

· Reduced modulation efficiency

Thermal management is especially challenging in miniaturized photonic integrated circuits.

Temperature Sensitivity

Although Lithium Niobate Wafers provide good overall stability, temperature fluctuations can still affect:

· Refractive index behavior

· Signal accuracy

· Modulation consistency

· Acoustic wave performance

Engineers often need additional compensation designs to maintain stable operation.

Integration With Silicon Photonics Platforms

Modern photonics increasingly relies on hybrid integration technologies.

Material Compatibility Issues

Silicon photonics platforms are widely used because of mature semiconductor manufacturing infrastructure.

However, integrating Lithium Niobate Wafers with silicon introduces challenges such as:

· Thermal expansion mismatch

· Different fabrication processes

· Optical coupling efficiency

· Packaging complexity

Achieving efficient integration while maintaining low signal loss requires advanced engineering expertise.

Packaging Complexity

High-performance photonic devices require extremely precise packaging alignment.

Challenges include:

· Optical fiber coupling accuracy

· Thermal stability during packaging

· Mechanical stress management

· High-frequency electrical connections

Packaging often becomes one of the most expensive and technically demanding stages of device production.

High-Frequency Signal Design Challenges

Lithium niobate is widely used in RF and high-speed optical systems, but ultra-high-frequency operation introduces additional complexity.

Signal Integrity Management

Engineers must carefully optimize:

· Electrode design

· Impedance matching

· RF transmission efficiency

· Signal loss reduction

Poor RF design may reduce modulation bandwidth and device efficiency.

Electrode Fabrication Precision

High-speed modulators require extremely accurate electrode structures.

Challenges include:

· Metal deposition uniformity

· Pattern alignment accuracy

· RF interference control

· Power efficiency optimization

Precision fabrication directly affects device speed and performance.

Cost and Yield Optimization Challenges

Advanced lithium niobate devices often involve expensive manufacturing processes.

Production Yield Issues

Complex fabrication increases the risk of:

· Surface defects

· Patterning errors

· Bonding failures

· Optical loss problems

Low manufacturing yield can increase production costs significantly.

Balancing Performance and Cost

Engineers must often balance:

· Device performance

· Manufacturing scalability

· Production efficiency

· Commercial cost targets

This becomes especially important for large-scale commercial applications.

CQT provides stable, high-quality Lithium Niobate Wafers that help manufacturers improve production consistency and reduce material-related defects.

Reliability and Long-Term Stability

Long-term reliability is essential for communication and industrial systems.

Environmental Stability

Engineers must ensure devices can withstand:

· Humidity

· Temperature cycling

· Mechanical vibration

· Long-term optical exposure

Reliable wafer quality is critical for maintaining stable performance over time.

Device Lifetime Requirements

Applications such as telecom infrastructure and aerospace systems demand long operational lifetimes with minimal performance degradation.

This places high demands on material quality and device design.

Future Outlook for Lithium Niobate Engineering

Despite these challenges, Lithium Niobate Wafers remain one of the most promising material platforms for future photonics and RF technologies.

Ongoing improvements in:

· Thin-film fabrication

· Hybrid integration

· Advanced packaging

· Wafer processing techniques

are helping engineers overcome many traditional limitations.

As technologies such as AI networking, 6G communication, and quantum photonics continue developing, lithium niobate is expected to play an even larger role in advanced device engineering.

Conclusion

Lithium Niobate Wafers offer exceptional performance advantages for optical communication, RF systems, and integrated photonics, but they also present several engineering and manufacturing challenges. Crystal orientation control, thin-film fabrication complexity, thermal management, hybrid integration, and high-frequency design optimization all require advanced technical expertise.

Despite these challenges, the unique electro-optic and piezoelectric properties of lithium niobate continue driving innovation across next-generation technologies. By providing precision-engineered Lithium Niobate Wafers, CQT​ supports manufacturers and engineers developing the future of high-speed communication and integrated photonic systems.
