How Cut Angle Impacts Performance of Single Crystal Quartz Wafers

 The performance of frequency control devices depends heavily on the quality and characteristics of the quartz material used in their construction. Among the many factors that influence quartz wafer performance, the cut angle is one of the most critical. Even slight variations in crystal orientation can significantly affect frequency stability, temperature behavior, vibration modes, and overall device reliability.

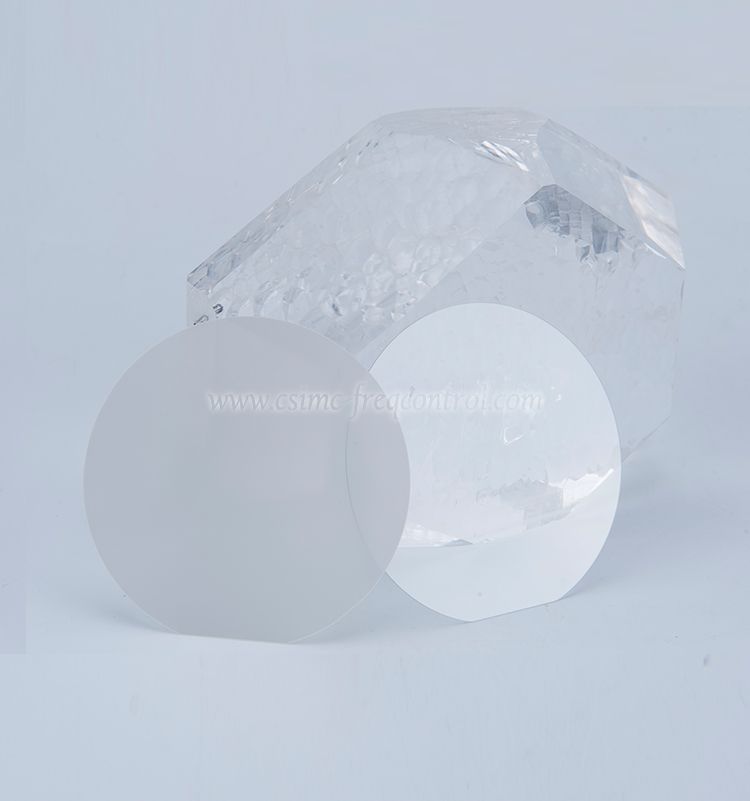

For manufacturers and engineers working with Single Crystal Quartz Wafers, understanding the role of cut angle is essential when designing crystal resonators, oscillators, filters, and sensors. Suppliers such as CQT provide precision-cut quartz wafers that meet strict industry specifications, ensuring optimal performance across a wide range of applications.

What Is the Cut Angle of a Quartz Wafer?

Quartz is an anisotropic material, meaning its physical and electrical properties vary depending on the direction within the crystal structure. When a quartz crystal is sliced into wafers, the orientation of the cut relative to the crystal axes determines how the wafer behaves under electrical excitation.

This orientation is known as the cut angle.

Different cut angles produce different frequency-temperature characteristics, mechanical properties, and vibration modes. As a result, selecting the appropriate cut is a fundamental step in frequency control device manufacturing.

Why Cut Angle Matters

The piezoelectric effect allows quartz to convert electrical energy into mechanical vibrations and vice versa. However, the efficiency and stability of this process depend on the crystal orientation.

Frequency Stability

One of the primary reasons manufacturers carefully control cut angle is to achieve stable frequencies.

Certain quartz cuts minimize frequency changes caused by temperature fluctuations, mechanical stress, or aging effects. This stability is essential for applications such as telecommunications, navigation systems, and industrial automation.

Temperature Performance

Temperature changes can alter the resonant frequency of a quartz crystal. The cut angle directly influences how much the frequency shifts as temperature varies.

Selecting the proper crystal orientation helps reduce frequency drift and improves long-term accuracy.

Vibration Characteristics

Different cuts support different vibration modes, which affect device sensitivity, frequency range, and signal quality.

The correct cut ensures efficient energy conversion and reliable device operation.

Common Quartz Cut Types

Several cut orientations are widely used in the production of Single Crystal Quartz Wafers.

AT-Cut Quartz Wafers

AT-cut quartz is one of the most common crystal orientations used in oscillator manufacturing.

Key Advantages

· Excellent temperature stability near room temperature

· Low frequency variation in standard operating conditions

· Suitable for frequencies ranging from kilohertz to hundreds of megahertz

· Widely used in consumer electronics and communication equipment

Because of its balanced performance, AT-cut quartz remains the industry standard for many frequency control applications.

SC-Cut Quartz Wafers

SC-cut, or Stress Compensated cut, was developed to provide enhanced performance in demanding environments.

Key Advantages

· Improved temperature stability

· Reduced sensitivity to mechanical stress

· Lower aging rates

· Higher frequency precision

SC-cut Single Crystal Quartz Wafers are commonly used in aerospace, military, and high-performance telecommunications systems.

BT-Cut Quartz Wafers

BT-cut wafers provide a different frequency-temperature characteristic compared to AT-cut quartz.

Key Advantages

· Suitable for specific frequency ranges

· Alternative thermal response characteristics

· Useful in selected timing and sensing applications

Although less common than AT-cut wafers, BT-cut crystals remain valuable for specialized designs.

Impact on Frequency-Temperature Characteristics

One of the most important effects of cut angle is its influence on frequency-temperature behavior.

Frequency Drift Reduction

Certain crystal orientations are engineered to minimize frequency variation across a defined temperature range.

For example, AT-cut quartz exhibits a relatively flat frequency-temperature curve near room temperature, making it highly suitable for commercial electronics.

Improved Environmental Stability

Devices operating in outdoor, industrial, or aerospace environments often experience extreme temperature changes.

Choosing the proper cut angle helps maintain timing accuracy under these conditions and reduces the need for additional temperature compensation circuitry.

Influence on Device Reliability

The cut angle also affects the long-term durability of quartz-based devices.

Reduced Stress Sensitivity

Mechanical stress can alter crystal vibration characteristics and introduce frequency errors.

Advanced cuts such as SC-cut are specifically designed to reduce stress-related frequency shifts.

Lower Aging Effects

Quartz crystals naturally experience minor frequency changes over time. Certain cut orientations minimize these aging effects, resulting in more stable long-term performance.

This is particularly important for precision timing applications where even small frequency deviations can impact system operation.

Manufacturing Precision Is Critical

Achieving the desired performance requires extremely accurate cutting processes.

Even a small deviation from the specified angle can affect:

· Frequency stability

· Temperature response

· Resonant characteristics

· Production consistency

As a result, manufacturers use advanced orientation measurement and cutting technologies to ensure precise crystal alignment.

Companies such as CQT implement strict quality control procedures throughout the crystal cutting process to maintain tight angle tolerances and ensure wafer consistency.

Selecting the Right Cut for Your Application

Choosing the appropriate cut angle depends on the intended application and performance requirements.

Consider Operating Environment

Applications exposed to varying temperatures may require AT-cut or SC-cut quartz to achieve optimal stability.

Evaluate Frequency Requirements

Different cuts support different frequency ranges and vibration modes. Understanding device specifications helps determine the best crystal orientation.

Assess Reliability Needs

High-reliability industries such as aerospace, defense, and telecommunications often prioritize cuts that offer superior stress resistance and long-term stability.

Working with experienced quartz wafer suppliers can help ensure the correct crystal orientation is selected for each project.

Why Choose CQT for Single Crystal Quartz Wafers

High-performance frequency control devices require wafers manufactured with exceptional precision. CQT supplies premium Single Crystal Quartz Wafers produced using advanced crystal orientation technology and rigorous quality standards.

With precise cut-angle control, excellent crystal purity, and consistent manufacturing processes, CQT helps customers achieve superior performance in oscillators, resonators, filters, and sensor applications.

Conclusion

The cut angle is one of the most influential factors affecting the performance of Single Crystal Quartz Wafers. It determines frequency stability, temperature characteristics, vibration behavior, stress sensitivity, and long-term reliability. Selecting the correct crystal orientation can dramatically improve the performance of frequency control devices while reducing operational risks.

By partnering with trusted manufacturers like CQT, engineers and procurement professionals can access precision-cut quartz wafers designed to meet the demanding requirements of modern electronic applications.
